Repairing Ford C-Max Wiper Motor Linkage made after 2011

watch video

The ATM-ZM Repair Channel will fit any of the joints of a C-Max but will need some work to the link before it will slide on.

Repaired Joint

C-Max-wiper-link

Filling The Joint

You will need to file approximately 2mm from the plastic socket before the Repair Channel will side on, I would recommend marking the link (see + mark) before removing it to avoid confusion.

Ford-C-Max-wiper-link Ford-C-Max-wiper-link

It can now be cleaned up and fitted following the instructions below

Repairing The Bell Crank Link Joint

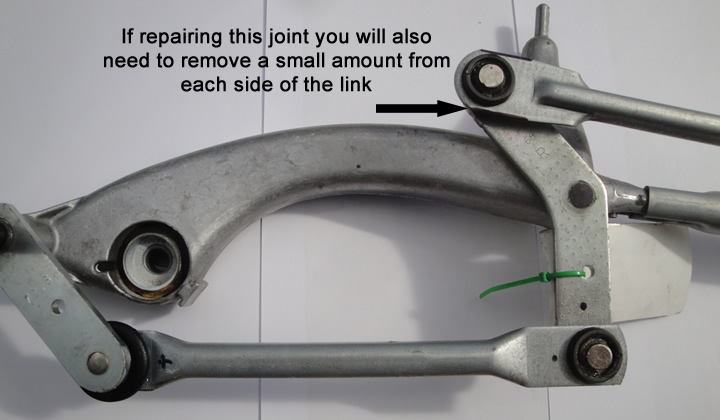

If repairing the joint on the bell crank you will also need to remove a small amount of metal from each side of the link

C-Max-motor-link-repair

Fitting Instruckions

Fitting instructions
